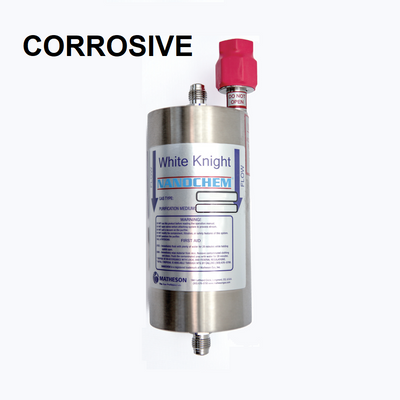

WK-Series (White Knight™) NANOCHEM® Corrosive Gas Purifier

USD $3,833.62

WK-Series (White Knight™) NANOCHEM® Gas Purifier

WK-Series (White Knight™) NANOCHEM® Corrosive Gas Purifier

USD $3,833.62

Part Number: UEQ WK-MTX Series

Availability: Ships within 3-5 days from Longmont, CO.

* Max Flow Rate:

10 slpm
75 slpm
150 slpm
225 slpm
500 slpm
800 slpm

* Isolation Valves:

* Gas:

Request Quote

Product Description

NANOCHEM® WK-Series (White Knight™) purifiers offer the highest lifetimes and the best impurity removal efficiencies in a very economical design. The in-line design enables a very compact footprint and allows drop-in replacement of competing hardware designs. The WK-Series is available in a a number of sizes from point-of-use applications to bulk purification.

Features and Benefits

• For point-of-use to bulk flow specialty gas purification
• Highest Lifetimes
• Best Impurity Removal Efficiencies – Removes critical contaminants to sub part-per-trillion levels
• Enhances manufacturing process economy and improves equipment performance
• Provides consistently high purity gas under fluctuating inlet impurity conditions
• Compact footprint; inline design
• Easy to install and operate
• No heating or cooling required
• Quick start up
• All metal parts, type 316L stainless steel, or Nickel 200
• Economical, low cost of ownership

Ordering Information
Part Number	Model Number	Isolation Valves	Max Flow	Pressure Drop*	Max Pressure	Inlet/Outlet Size**
UEQ 10600441008	WK-75F-MTX		10 slpm	< 1 psi	1000 psi	1/4"
UEQ 10600544008	WK-300P-MTX		75 slpm	TBD	500 psi	1/4"
UEQ 10600545008	WK-300P-MTX-MN	X
UEQ 10600532008	WK-500P-MTX		150 slpm	< 5 psi	500 psi	1/4"
UEQ 10600554008	WK-500P-MTX-MN	X
UEQ 10600546008	WK-700P-MTX		225 slpm	< 7 psi	500 psi	1/4"
UEQ 10600547008	WK-700P-MTX-MN	X
UEQ 10600533010	WK-2500P-MTX		500 slpm	< 4 psi	500 psi	1/4"
UEQ 10600534010	WK-2500P-MTX-MN	X
UEQ 10600548008	WK-5000P-MTX		800 slpm	< 4 psi	500 psi	1/2"
UEQ 10600549008	WK-5000P-MTX-MN	X

*Note: Pressure drop at max flow rate, tested in N₂ at 90 psi inlet
**Inlet/Outlet is Face Seal - Male

Specifications

• Filter: 0.003 µm with 99.9999999% retention (PTFE or 316L SS)
• Internal surface finish: < 15 µin Ra
• Media: Metal-X™
• Maximum operating temperature: 104°F (40°C)
• Inlet/Outlet: 1/4" Face Seal - Male
