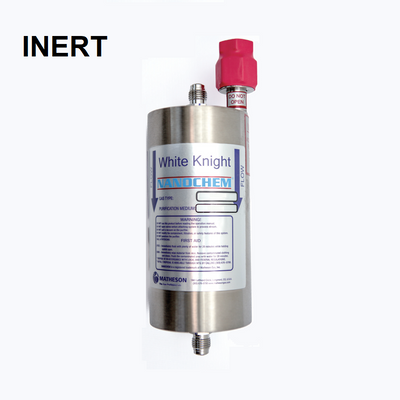

WK-Series (White Knight™) NANOCHEM® Inert Gas Purifier

USD $1,542.08

WK-Series (White Knight™) NANOCHEM® Inert Gas Purifier

USD $1,542.08
Part Number:    UEQ WK-Series
   Availability:   Ships within 3-5 days from Longmont, CO.


Request Quote

Product Description

MATHESON made in the USA





NANOCHEM® WK-Series (White Knight™) purifiers offer the highest lifetimes and the best impurity removal efficiencies in a very economical design. The in-line design enables a very compact footprint and allows drop-in replacement of competing hardware designs. The WK-Series is available in a a number of sizes from point-of-use applications to bulk purification.

Features and Benefits

• For point-of-use to bulk flow specialty gas purification
• Highest Lifetimes

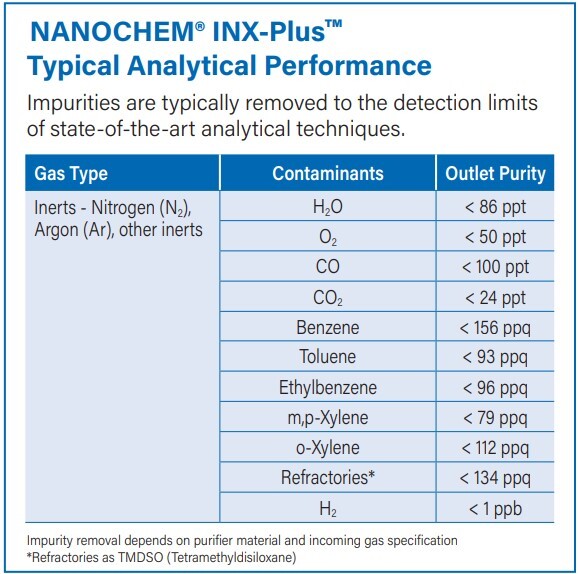

• Best Impurity Removal Efficiencies – Removes critical contaminants to sub part-per-trillion levels
• Enhances manufacturing process economy and improves equipment performance
• Provides consistently high purity gas under fluctuating inlet impurity conditions
• Compact footprint; inline design
• Easy to install and operate
• No heating or cooling required
• Quick start up
• All metal parts, type 316L stainless steel, or Nickel 200
• Economical, low cost of ownership

Ordering Information

Part Number

Model Number
Bypass
Valves
Max
Flow
Pressure
Drop*
Max
Pressure
Inlet/Outlet
Size**
UEQ 10600527001 WK-75F-NP-OMX#   10 slpm < 1 psi 1000 psi 1/4"
UEQ 10600544011 WK-300P-OMX-PLUS   75 slpm TBD 500 psi 1/4"
UEQ 10600545011 WK-300P-OMX-PLUS-MN X
UEQ 10600532011 WK-500P-OMX-PLUS   150 slpm < 5 psi 500 psi 1/4"
UEQ 10600554011 WK-500P-OMX-PLUS-MN X
UEQ 10600546011 WK-700P-OMX-PLUS   225 slpm < 7 psi 500 psi 1/4"
UEQ 10600547011 WK-700P-OMX-PLUS-MN X
UEQ 10600533008 WK-2500P-OMX-PLUS   500 slpm < 4 psi 500 psi 1/4"
UEQ 10600534008 WK-2500P-OMX-PLUS-MN X
UEQ 10600548011 WK-5000P-OMX-PLUS   800 slpm < 4 psi 500 psi 1/2"
UEQ 10600549011 WK-5000P-OMX-PLUS-MN X

*Note: Pressure drop at max flow rate, tested in N2 at 90 psi inlet
**Inlet/Outlet is MVCR Compatible
#Note: The Model WK-75F-NP-OMX does not remove hydrocarbons

Specifications

• Filter: 0.003 µm with 99.9999999% retention (PTFE or 316L SS)
• Internal surface finish: < 15 µin Ra
• Media: OMX-Plus™
• Maximum operating temperature: 104°F (40°C)
• Inlet/Outlet:  MVCR - compatible
