PAN-5100-705 Series Analytical Grade Panel for Ammonia (1 valve)

USD $3,689.87

PAN-5100-705 Series Analytical Grade Panel for Ammonia (1 valve)

USD $3,689.87
Part Number:    5100-705 Series Panels
   Availability:   Ships within 48 hours from Montgomeryville, PA


Request Quote

Product Description

MATHESON made in the USA





Matheson's PAN-5000 Series of analytical grade stainless steel gas panels are designed to safely control and dispense gases, while providing a high level of process purity. The PAN-5000 Series panels feature Matheson components that have a proven track record in analytical laboratories and chemical process industries worldwide. Use of these analytical distribution panels with a Matheson gas cabinet enclosure provides the high level of safety required when handling corrosive, flammable or toxic gases.

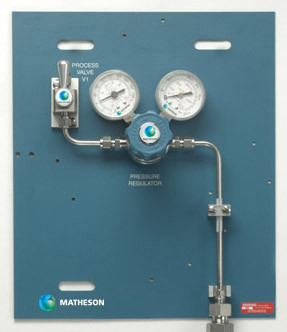

Matheson’s 5100 Series Panel is most basic panel design which offers a pressure regulator and process on/off control valve. Connection to the gas supply is conveniently made using a rigid pigtail This panel is made for ammonia service with a CGA 705 connection. There is a stainless steel/neoprene check valve after the CGA 705 connection.


Design Features

• 4360 Series Quarter-Turn Diaphragm Valves with 316 stainless steel body and Kel-F seats for positive shut-off.
• Valves are firmly mounted to the backplate but are easily removable from the front for maintenance.
• Pressure regulator with tied diaphragm design to ensure closure.
• Gauges have a 316 stainless steel connection and bourdon tube with dual scale showing pressure in psi and kpa.
• Backplate constructed of carbon steel and coated with corrosion resistant paint, the panel has mounting holes for easy installation in your gas cabinet. Mounting hole spacing is consistent with all Matheson LabGas System® products. Panel also has labeling of all panel components to aid in operation of the controls.

Standard Configuration

3610A Series Single-Stage High-Purity with Tied-Diaphragm Regulator
• Rigid stainless steel pigtails
CGA 705 connection with SS/Neoprene check valve
• 1/4” compression tube outlet connection

Specifications

• Panel Dimensions: 12” W x 14“ H
• Material (Regulators/Gauges/Fittings): Stainless Steel
• Material (Check Valve): Stainless Steel/Neoprene
• Pressure Regulator Cv: 0.09

  Wall Mounting Kit


  Wall Mounting Kit
This is mounting kit for a panel. The kit includes two 18" long pieces of Aluminum U-channel and four sets of nuts and bolts to secure the panel to the U-channel. This kit does not include the hardware to mount the U-channel to a wall.
Wall Mounting Kit - 18"




Instructions

Instructions, 5000 Series Panels

3D Model

PAN-5100 Panel

Warranty Information

Find Similar Products by Category
