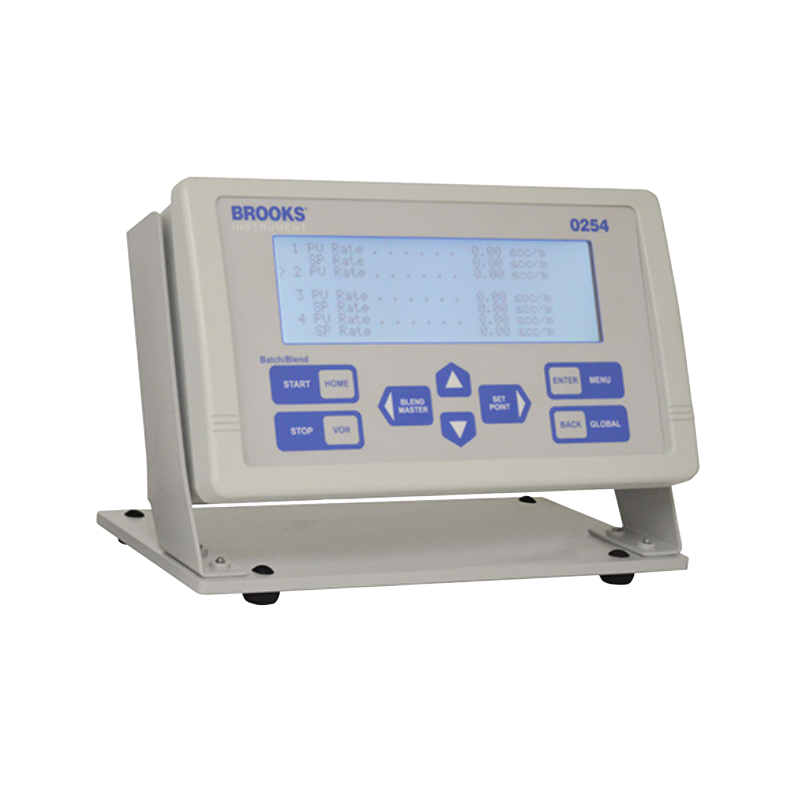

The 0250 Series is an innovative, reliable microcomputer-based controller providing power for up to four 829 Series Mass-Flow Controllers in a new compact design. Additionally, the Model 0254-AL  can be used to generate flow set point commands, display flow rate, totalize flow, provide blending multiple flow streams, and more. This fully RoHS compliant device has a very user-friendly interface and is offered with a table-top mount.

Features & Benefits

• Variety of mechanical configurations for users’ specific application (panel, desktop, rack mount)
• Self-diagnostics on every power-up ensures device is fully functional
• Totalization can be used for inventory management
• Batch control allows single or multi-channel batch recipes
• Blending supports master slave blending configuration and operation<
• Gas factor scaling allows user to adapt the Model 0254-AL and mass flow device to any fluid
• Valve Override Control (VOR) – open, closed or normal
• Large, graphic, high-contrast, eight (8) line backlit display
• Brooks Smart DDE Software simplifies data exchange between the Model 0254-AL and commonly used programs such as Microsoft® Excel, Test Point™ and LabVIEW™
• RS232 serial port allows remote control, data logging, and remote alarms

Specifications

• Power Input: Voltage: 12-24 Vdc required, -15 Vdc permitted
• Current: 400 mA max current draw per channel
• Instrument power draw: 0.8 Watts
• Optional power module: 100-240 VAC, 47-63 Hz
• Power Output: +15V/2.0A, -15V/1.0A or 12-24 VDC/2.0A
• Signal Input / Output: 0(1)-5 Volts, 0(2)-10 Volts, 0(4)-20 mA
• Digital Communication: Full communications capability for remote readout, setpoint, control, programming and data acquisition via RS232.
• Temperature: 32-122°F (0-50°C), 0-95% non-condensing

Certifications/Approvals

• EMC: CE Mark: EMC Directive EN61326-1:2013 & FCC Part 15 Class A, Part 68
• Environmental Compliance: RoHS EPD 2011/65/EU & UL-USA & Canada UL 61010 electrical safety for general purpose indoor use
