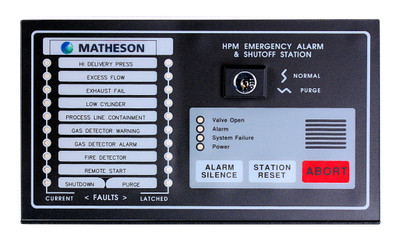

The Matheson GSM-12 Electronic Shutdown Controller is designed to provide the ultimate in safety when using flammable or toxic gases. Includes a six foot long power cord and 10 feet of 1/8" OD soft polyurethane tubing

Description

The GSM-12 consists or an electronic controller that reads various conditions and has a solenoid valve that can activate a pneumatic valve in your gas system. The controller is programmed to monitor a large number of sensors and will automatically alarm, or alarm and shutdown if a particular condition warrants an action. The controller also has an ABORT button on the front for manual shutdown. The specific sensor shutdown conditions are programmed into the system at the factory. Delay times between when a fault condition is first sensed and when an actual shutdown or alarm occurs have been programmed to avoid any nuisance alarm tripping.

Typical Sensors used with GSM-12

• Excess Flow
• Exhaust Failure
• Gas Detector Warning
• Gas Detector Alarm
• Fire Detector
• Low Cylinder Contents (by pressure or weight)
• High Delivery Pressure
• Process Line Containment
• Remote Start
• Remote Shutdown

(Sensors ordered separately)

Instructions

Instructions, GSM-12
