827A Single Channel Mass Flow Controller

USD $1,947.90

827A Single Channel Mass Flow Controller

USD $1,947.90
Part Number:    SEQ827A
   Availability:   Ships within 48 hours from Montgomeryville, PA


Request Quote

Product Description

MATHESON made in the USA

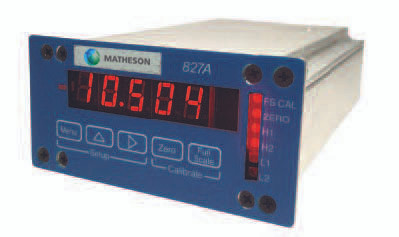

The MATHESON Model 827A is a state-of-the-art, microprocessorbased, high performance readout for mass flow meters & controllers. The 827A has an integral ±15 VDC @350 mA power supply for sensor power. It accepts a 5 VDC input signal that can be digitally calibrated and displayed in engineering units for flow, i.e. sccm / slpm. Calibration can be performed using the front panel membrane switches or via the optional RS-232 serial communication port. The 827A has (4) digital alarm set points, (2) high and (2) low alarms, with open collector outputs that can be used to drive (4) relays. The alarm set point status is indicated by (4) annunciator LEDs on the front panel. The RS-232 option provides bi-directional RS-232 communications for setting all parameters and onitoring the displayed readings. Baud rate and parity are user selectable. The Set point option is used with flow controllers to generate an analog control signal. A 0-5 VDC user selectable set point signal is generated, scaled proportionally to the full scale CAL value. The user simply sets the StPt value, manually via the front panel or using the serial RS-232 port, and the 827A does the rest.

Features & Benefits

• Microprocessor-based smart readout, power supply and controller
• Designed for use with Mass Flowmeters, Mass Flow Controllers
• ±15 VDC @ 350 mA (max) from an integral, linear power supply provides clean, current limited, thermal overload protected, sensor power
• Accepts 5 VDC input signal
• 4½ digit, ±19,999 count, analog-to-digital converter resolution
• ±99.999 maximum display readout with hi-efficiency red LEDs
• Simple push button ZERO and FULL SCALE calibration to display flow in engineering units
• (4) alarm setpoints with open collector outputs and front panel LED annunciators
• Optional RS-232 serial communication
• Optional 0-5 VDC or 0-10 VDC user selectable analog Command Setpoint (StPt) control signals
• Rugged, 1/8 DIN panel mountable, extruded aluminum case
• 100/115/230 VAC, 50-60 Hz, internal jumper selectable ac power input

Specifications

INPUT
Input Signal: 5 VDC Full Scale
Input Impedance: > 1 MΩ
Input Bias Current: < 1nA

ANALOG TO DIGITAL CONVERTER
Type: Integrating, dual slope with auto-zero
Linearity: ± 0.01% FS ± 1 digit
FS Accuracy: ± 0.01% FS ±1 digit
Zero Stability: ± 1μV per ºC
Conversion rate: 2.5 conversions per second

READOUT
Display Type: (5) 0.4” high efficiency red LEDs
Annunciators: (6) ZERO, CAL, H1, H2, L1, L2, red LEDs
Polarity: Minus sign displayed for negative readings. No sign for positive readings.
Decimal Points: Selectable via front panel switches or via optional RS-232 communication port
Overrange Display: Flashing display indicates input > 10VDC
No Sensor Indication: The display will flash overrange when sensor is not connected.

TRANSDUCER POWER SUPPLY
Voltage: ± 15 VDC ±5%
Current: 350 mA (max), with short circuit current limit and thermal overload protection.

RS-232 OPTION
RS-232: Bi-directional RS-232 serial communications
Baud Rate: 2400 and 9600, user selectable
Parity: Even or none (7 data bits for even and 8 data bits for none) user selectable

SETPOINT OPTION
Setpoint: 0-5 VDC or 0-10 VDC, user selectable
Accuracy: ± 0.1% FS

FUSE
100-120V~ input: 250 V~, 500 mA, slow blow 5mm fuse
220-240V~ input: 250 V~, 250 mA, slow blow 5mm fuse

PACKAGE
Type: 1/8 DIN extruded aluminum housing, w/ shielded front panel switch assembly.
Size
Cutout: 45 mm(1.77”)H x 92 mm(3.62”)W
Front Panel: 48 mm(1.89”)H x 96 mm(3.78”)W
Case: 45 mm(1.77”)H x 92 mm(3.62”)W x 141 mm (5.55”)D

CERTIFICATION
Type: CE
Certified to: EN61010-1:1991/A2:1995

Instructions, 827A Flow Controller
