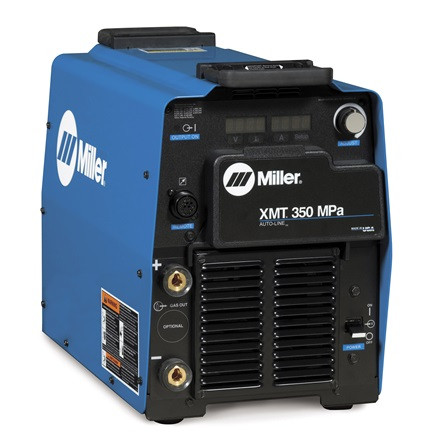

MILLER XMT 350 MPa 907366 AUTO LINE Dinse

MILLER XMT 350 MPa 907366 AUTO LINE Dinse

Part Number:    MIL 907366
   Availability:   In-store pickup or store-based delivery. Contact store or request quote.


Request Quote

Product Description


This product is available in MATHESON Retail Stores, or through MATHESON Sales Representatives, but it is not offered for online purchase. To find the MATHESON Location most convenient for you, use our Store Locator.

If visiting a store is not convenient for you (or even if it is), you may prefer to request a quotation. Simply click the "REQUEST QUOTE" button, and provide us with the necessary details. THANK YOU!



Portability and excellent arc performance make the XMT family the most popular in the industry. The XMT 350 MPa offers built-in pulse programs for standard steels, high-strength steels and aluminum.

Built-in Pulse programs
Provide reduced heat affected zone, weld in all positions, great for thick-to-thin metal, good gap filling ability and faster travel speeds and deposition.

SharpArc®
Controls the arc in Pulsed MIG mode and gives total control over the arc cone shape, puddle fluidity and bead profile.


Auto-Line™ Power Management Technology
Allows for any input voltage hookup (208-575 VAC, single- or three phase) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable input power.

Advanced features for the professional welder
Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion. Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high frequency.

Standard 14-pin Receptacle
Has the flexibility to be used with spool guns, feeders, and remote controls.


Welder friendly control panel
Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage. Large, dual digital meters are easy to view and presettable to ease setting weld output.

Output connector choices
Dinse- or Tweco®-style weld cable connectors provide high-quality weld cable connections. (Note: Two Dinse connectors are supplied with each Dinse machine. Tweco connectors must be ordered separately.)

Reliability
Wind Tunnel Technology™ protects internal components, greatly improving reliability. Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine.  Learn More

Added Features
70 Series MPa wire feeder provides synergic pulsed MIG - as you increase/decrease the wire feed speed, the pulse parameters increase/decrease, matching the right amount of power output to match the wire speed, eliminating the need to make additional adjustments. 70 Series MPa adds wire deposition capabilities with Insight Core™. XR-AlumaFeed™ wire feeder provides Profile Pulse™ - TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.

PROCESSES
Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)

MIG (GMAW)

Stick (SMAW)

TIG (GTAW)

GENERAL SPECIFICATIONS





Name XMT® 350 MPa, Dinse
Industries Interests Aerospace
  Construction
  Heavy Equipment Manufacturing
  Infrastructure
  Manufacturing
  Railcar
  Shipbuilding
  DIY / Home Hobbyist
  High Purity Processing
  Boat / Yacht
Carbon Diameter 1/4 in (6.4 mm)
Current Type CC / CV
Input Hz 50 / 60 Hz
Input Phase 1- and 3-Phase
Portability Handle(s)
  Running Gear / Cart (Optional)
Net Height 17 in
Net Length 24 in
Input Voltage 208 V
  220/230/240 V
  380/400/440 V
  460/480 V
  575 V
Net Weight 80 lbs
Weldable Metals Aluminum
  Specialty Metals
  Stainless Steel
  Mild Steel
Net Width 12.5 in
Warranty Miller's True Blue Warranty
