Ranger 305 G engine drives are powerful multi-purpose stick, TIG, wire and pipe welders.
Ready for a Workout!™

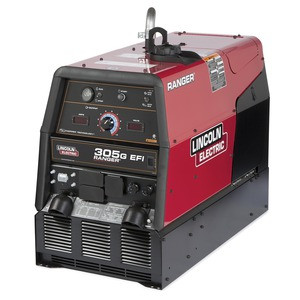

The Ranger® 305 G EFI is a powerful multiprocess stick, TIG, wire and pipe welding engine-driven welder that is ready for all day, everyday performance. It includes Lincoln Chopper Technology® for superior arc performance.
- Kohler® Gasoline Engine
- 25 HP EFI (Electronic Fuel Injection) for easier starts in cold weather and lower fuel use!
- Electric fuel pump to avoid vapor lock at high altitude operation.
- Multi-Process Welding
- Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire, MIG (CO2 and mixed gas) and arc gouging.
- Only compact gasoline welder in North America rated at 29V for 300 amps of stick or CV welding.
- CV wire welding with up to 5/64 in. (2.0 mm) diameter electrodes.
- Digital Weld Meters
- Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output.
- Superior Arc Performance
- Lincoln Chopper Technology® provides easy starts, a smooth arc, low spatter and excellent bead appearance.
- Peak Single-Phase AC Generator Power for Motor Starting
- 12,000 watts peak for motor starting.
- 9,500 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Invertec® inverter welder. Also use for lights, a grinder or other power tools.
- AC generator voltage is constant at 120V or 240V at any weld dial setting.
- Skewed Rotor Design
- Skewed rotor design provides AC power suitable for operating Lincoln Electric inverter power sources. Lincoln Electric was the first in the welding industry with this feature.
- Rugged Reliability
- Welding and AC Generator Outputs rated at 104°F (40°C).
