1170F Series Cylinder Cabinet

USD $3,526.23

1170F Series Cylinder Cabinet

USD $3,526.23
Part Number:    1170F Series
   Availability:   Ships within 1 week from Montgomeryville, PA


Request Quote

Product Description

MATHESON made in the USA

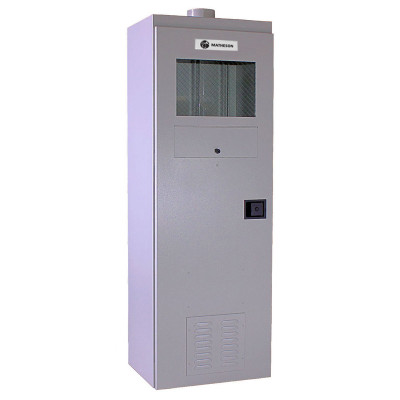

 Matheson's Model 1170 is our standard gas cabinet series with a flat top design. The construction is optimized for economy, without compromising safety or quality.

Features

Automatic door closure to ensure containment of leaks
Modular U-Channel Supports make installation of gas control panels, cylinder supports, shelving, and other equipment easy.
Lockable access panel and wire reinforced safety glass viewing window have steel frames and are fully gasketed.  Allows the user to interface with cylinder and associated manifold/panel with door closed.
Non-protruding paddle type latch prevents accidental opening and snagging. It slams and latches at three points and is fitted with a lock for security.
Neoprene gaskets fit snugly around door to ensure a positive seal
Standard inlet air louver lets air into the cabinet. Enables sufficient exhaust to move through cabinet to meet code requirements for air flow.
Flat-top design with exhaust stack. Easy mounting of controllers for more complex systems.
• Removeable top access panel.  Allows user to add/drill feed-through openings on a work bench should they be needed.
• Fire sprinkler head, for extra protection with a fuse rating of 155°F.
• Cylinder restraints to ensure that all cylinders are held securely in place during storage and operation
• Rugged exterior construction of 12-gauge cold rolled steel with welding seams.
• Interior and exterior is finished with gray 2-part polyurethane paint.
• Low profile, one-inch reinforced threshold makes cylinder installation and removal easy.



Specifications

(Meets or exceeds Uniform Fire Code (UFC) Article 80 requirements)

• Cabinet: 12 gauge cold rolled steel
• Gaskets: Neoprene with oil resistant adhesive
• Window: 1/4" wire reinforced safety glass
• Paint: 2-part polyurethane; interior and exterior –light gray
• Cabinet Floor: Zinc-plated steel
• Doors: 1 and 2 cylinder cabinets – one door with left hand hinge
• Doors: 3 cylinder cabinet – double door with off-center post
• Integral Sprinkler: Fuse rating of 155°F and flow capacity of 35 GPM @ 40 psi
• Water Pipe Connection: 1/2" NPT Female

  Cylinder Options


  Chain for Cylinder(s) (option 1) for extra cylinder security 711-c-s.jpg
  Shelf for Cylinder(s) (option S) Supports small cylinders higher in the cabinet for ease of interaction 1190-s.jpg



  Ventilation Options


  Diffuser Plate with Filter (option D)
To prevent small particulates from entering the cabinet interior.
  Fusible Link (option L)
Blocks air from entering cabinet in case of fire.
Temperature rating: 165 F
Approvals - UL & C-UL Listed and FM Approved



  Shutdown Options


  GSM-12 Shutdown Controller (option G)
The GSM-12 controller is typically used to operate a pneumatically operated, normally closed, emergency shutoff valve (ESO) on a gas panel. It has ten sets of contacts for alarm conditions:
• Excess Flow
• Exhaust Failure
• Gas Detector Warning
• Gas Detector Alarm
• Fire Detector
• Low Cylinder Contents (by pressure or weight)
• High Delivery Pressure
• Process Line Containment
• Remote Start
• Remote Shutdown

(Sensors ordered separately)

Delay times between when a fault condition is first sensed and when an actual shutdown or alarm occurs have been programmed to avoid any nuisance alarm tripping.
The controller also has an ABORT button on the front for manual shutdown.

  Magnahelic (option M)
Gives visual status of exhaust suction (option M).
This is often paired with the exhaust failure switch
Range: 0-3" WC
  Exhaust Failure Switch (option X).
Switch used to indicate low exhaust suction. This is a popular option with the GSM-12



Instructions, 1170 Series

Drawing

Drawing, 1177F

Drawing, 1178F

Drawing, 1179F

3D Model

1177F

1178F

1179F
