Features

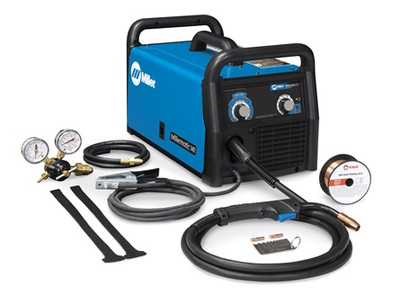

WHAT'S INCLUDED

• Millermatic 141
• 6.5-ft. (2 m) power cord with plug
• 10-ft. (3 m) M-100 MIG gun and cable assembly
• 10-ft. (3 m) work cable with clamp
• Argon and AR/CO2 mix flow gauge regulator with gas hose
• Hobart® spool of .030-in. (0.8 mm) solid wire
• Quick Select drive rolls for .024-in (0.6 mm) or .030/.035-in.
• (0.8/0.9 mm) solid wire, and .030/.035-in. (0.8/0.9 mm) flux-cored wire
• Two contact tips for .030-in. (0.8 mm) wire
• Material thickness gauge (#229 895)
• Velcro cord wraps



Auto-Set™

A breakthrough control that automatically sets your welder to the proper  parameters.  Auto-Set offers all-in-one MIG minus the hassle of finding parameters.  Simply set the wire diameter, set the material thickness, and start welding!







120V Input Power

Uses 120V household input power so there is no special power requirements.  Flexible to use in any location!



Manual Mode

Gives you the flexibility to manually set the machine when welding aluminum, stainless steel or anytime you want to set your own parameters on mild steel.



Smooth-Start™

This technology provides a smooth, spatter-free start.  The best starting machine in the 120V MIG category!  No more pop-gun starts or spatter to clean up.







Angled All Aluminum Drive System

Robust wire drive with Quick Select™ drive roll and calibrated tension knob creates consistant feeding and easy setup for up to 15-foot MIG guns.



Auto Spool Gun Detect™

Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.





Quick Select™ Drive Roll

Makes setup quicker by offering three grooves - two for different size solid wire and a third for flux-cored wire.



Thermal Overload & 'Tip Saver' Short Circuit Protection

Shuts down the unit and activates the over-temperature light if the airflow is blocked or duty cycle is exceeded.  Tip Saver shuts down output when the tip is shorted to the work extending tip life and protecting internal components from damage.



NOT INCLUDED

• Shielding gas for welding with solid wire (GMAW)
• Spool Gun for welding aluminum
• Personal safety products (helmet, gloves)
• Small running gear/cylinder rack

PROCESSES
MIG (GMAW)
Flux Cored (FCAW)
GENERAL SPECIFICATIONS
Title	Millermatic® 141 MIG Welder
Industries Interests	Auto / Cycle (Racing, Customizing, Restoring)
	DIY / Home Hobbyist
	Farm and Ranch
	Metal Art / Sculptures
	Manufacturing
Current Type	DC
Input Hz	60 Hz
Input Phase	1-Phase
Portability	Handle(s)
	Running Gear / Cart (Optional)
Net Height	12.5 in
Net Length	20.5 in
Input Voltage	110/115/120 V
Max Open Circuit Voltage	30 VDC
Net Weight	51 lbs
Weldable Metals	Mild Steel
	Stainless Steel
	Aluminum
Net Width	11.25 in
Warranty	Miller's True Blue Warranty
Material Thickness	Mild Steel 24 ga - 0.1875 in
	Aluminum 18 ga - 14 ga
Wire Feed Speed	15 IPM - 360 IPM
	0.4 m/min - 9.1 m/min
Wire Diameter	Solid Steel 0.024 in 0.03 in
	Solid Steel 0.6 mm 0.8 mm
	Stainless 0.024 in 0.03 in
	Stainless 0.6 mm 0.8 mm
	Flux Cored 0.03 in 0.035 in
	Flux Cored 0.8 mm 0.9 mm
Rated Output	90 Amps at 18.5 VDC, 20% duty cycle
