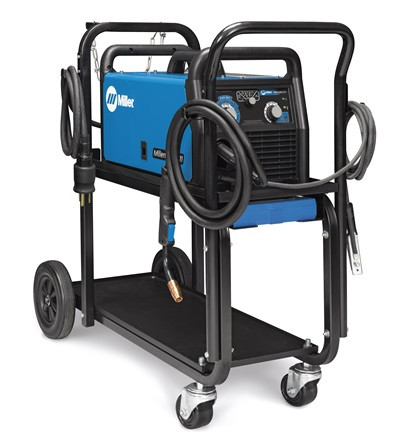

Miller Millermatic 211 with Running Gear 951603

Miller Millermatic 211 with Running Gear 951603

Part Number:    MIL 951603
   Availability:   In-store pickup or store-based delivery. Contact store or request quote.


Request Quote

Product Description


This product is available in MATHESON Retail Stores, or through MATHESON Sales Representatives, but it is not offered for online purchase. To find the MATHESON Location most convenient for you, use our Store Locator.

If visiting a store is not convenient for you (or even if it is), you may prefer to request a quotation. Simply click the "REQUEST QUOTE" button, and provide us with the necessary details. THANK YOU!



WHAT'S INCLUDED

  • Millermatic 211
  • 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
  • 10 ft (3 m) M-100 MIG gun and cable assembly
  • 10 ft (3 m) work cable and clamp
  • Argon and AR/CO2 mix regulator/flow gauge with hose
  • Spool of Hobart® .030 in (0.8 mm) solid wire
  • Two contact tips for .030 in (0.8 mm) wire
  • Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
  • Material thickness gauge #229895
  • Hook-and-loop cord wraps
  • Running gear/cylinder rack



Advanced Auto-Set™
Advanced Auto-Set™ now includes five different wire/gas combinations and .024, .030 and .035-inch wires. The easiest welder to use just became more versatile.



Inverter Technology
Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.



Multi-voltage plug (MVP™)
Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.



New Drive System
Angled cast-aluminum drive system with calibrated tension knob creates consistent feeding and easy setup for up to 15-foot MIG guns.

Quick Select™ Drive Roll
Quick Select™ drive roll makes setup quicker by offering three grooves—two for different size solid wire and a third for flux-cored wire.

Auto Spool Gun Detect™
Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.

Fan-On-Demand™
Fan-On-Demand™ power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.

Smooth-Start™
Smooth-Start™ provides a smooth, spatter-free start. It’s the best-starting machine in the small MIG machine category.



NOT INCLUDED

  • Shielding gas
  • Safety equipment



PROCESSES
MIG (GMAW)

Flux Cored (FCAW)


GENERAL SPECIFICATIONS

Name Millermatic 211 with Running Gear
Industries Interests DIY / Home Hobbyist
  Farm and Ranch
  Metal Art / Sculptures
  Auto / Cycle (Racing, Customizing, Restoring)
Current Type DC
Input Hz 60 Hz
Input Phase 1-Phase
Portability Handle(s)
  Running Gear / Cart (Standard)
Net Height 12.5 in
Net Length 20.5 in
Input Voltage 110/115/120 V
  220/230/240 V
Max Open Circuit Voltage 54 VDC
Net Weight 38 lbs
Weldable Metals Mild Steel
  Stainless Steel
  Aluminum
Net Width 11.25 in
Warranty Miller's True Blue Warranty
Amperage Range 30 A - 230 A
Material Thickness Mild Steel 24 ga - 0.375 in
  Aluminum 18 ga - 0.375 in
Wire Feed Speed 1.5 m/min - 15.2 m/min
  60 IPM - 600 IPM
Wire Diameter Solid Steel 0.024 in 0.035 in
  Stainless 0.024 in 0.035 in
  Flux Cored 0.03 in 0.045 in
  Solid Steel 0.6 mm 0.9 mm
  Stainless 0.6 mm 0.9 mm
  Flux Cored 0.8 mm 1.2 mm
Rated Output 150 A at 21.5 VDC, 40% duty cycle (240V)
Spool Size 8 in (203 mm)
