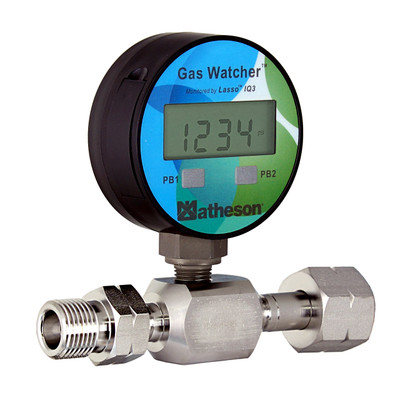

The Gas Watcher^TM Inline Adapter easily fits between a pressure regulator and either a manifold or cylinder.  The inlet is a CGA nut and tailpiece that can attach to a gas cylinder and the outlet has a CGA bushing on the outlet which allows it to be easily installed on the inlet of a pressure regulator.

The Gas Watcher^TM is a Bluetooth wireless device that can display gas operating pressure in "real time" locally on the device itself or remotely via connection to a web based portal.  Gas Watcher^TM  has the approximate dimensions similar to standard pressure gauges and can easily be installed onto pressure regulators, SwitchPro^TM Automatic Switchover systems and manifolds.  Gas Watcher is powered by a 3 volt lithium battery and can provide continuous service for about 18 months before battery replacement.  The operation and control settings for the Gas Watcher^TM  are performed and accessed through a set of two push buttons located on the face of Gas Watcher^TM .

The user can set a local low pressure warning to a value from 200 to 500 psig in 50 psig increments.

A Receiver/Router and an Annual Monitoring/Reporting Service (first year included with Receiver/Router) is required if the user wants to access the pressure remotely on a computer, tablet or smart phone.

Specifications

• Dial Size: 2-3/4"
• Pressure Connection: 1/4" MNPT - Lower Mount
• Wetted Material: 316 Stainless Steel
• Battery: CR 2450 (3V)
• Expected Battery Lifetime: 18 Months
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• Accuracy: +/- 0.5% full scale
• Rating: NEMA 12 (NEMA 4 with weatherproof tape)

Instructions, Gas Watcher
