- FM-1050 Series High Accuracy Flowmeter (Argon Scale), Stainless Steel
Product Description

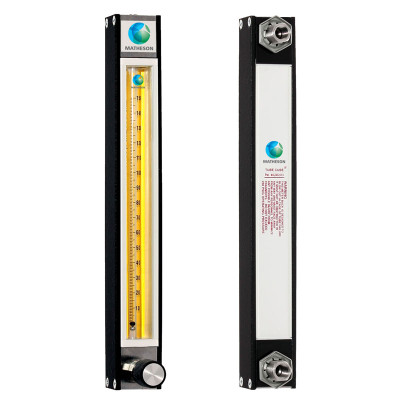

Matheson’s FM-1050 Series Flowmeters provide the most accurate indication and precise control of fluids available for a wide range of applications. This versatile meter is functionally and dimensionally interchangeable with other current designs while incorporating many innovative features.
All FM-1050 Series glass metering tubes have integral float guides to ensure a guaranteed ±5% of full scale accuracy. These meters have direct read scales for argon at 0 psi.
Standard with this series is the uniquely designed Tube-Cube®. The “cube,” a unitized tube holder, aligns the tube quickly and easily for simple tube installation or replacement. The Tube-Cube® provides protection during handling, reducing chipped tube ends, broken tubes and misalignment. The 1.5 X scale magnification lens allows for a more accurate reading. End seals in the FM-1050 are direct acting and nonrotating for fast alignment and convenient service access.
Valve Options
• Utility (six-turn) valve for those who desire control as well as indication
• High accuracy (fifteen-turn) valve, for very precise control and repeatability
• No valve for those who just want indication
Applications
Typical applications include:
• Flow measurement of purge gases
• General laboratory or instrument flow monitoring
• Flow measurement of calibration standards used in environmental monitoring
Design Features
• Precision tapered, fluted metering tube
• Low pressure drop for increased available flow rates at low feed pressures
• Standard front panel mounting requires minimum hardware -easy installation, quick access
• Available utility and high precision metering valves do not require special fittings
• Simplified, direct acting, nonrotating compression plug for quick and easy tube sealing
Materials of Construction
• Wetted End Blocks, Fittings and Internal Parts: 316 stainless steel
• Seal Materials: Viton
• Side Plates: Painted aluminum
• Metering Tube: Borosilicate glass enclosed in Tube-Cube® holder
• Piping Connections: 316 stainless steel
• Float Materials: Black glass and 316 stainless steel
• Scale: Ceramic ink on glass tube, length 150mm
Accuracy
• Accuracy: ±5% of full scale flow rate
• Repeatability: 0.25% of scale reading
Specifications
• Pressure Rating: 250 psi maximum
• Temperature Rating: -20°F to 250°F
• Range: 10 to 1, i.e., 100% to 10% of full scale
• Shipping Weight: 1 lb
Correction Factors
Rotameter Pressure Correction Factors
Rotameter Temperature Correction Factors
Rotameter Gas Correction Factors
Instructions
Engineering Drawings
Engineering Drawings, Rotameters
