- Bypass Module - White Knight™
Product Description

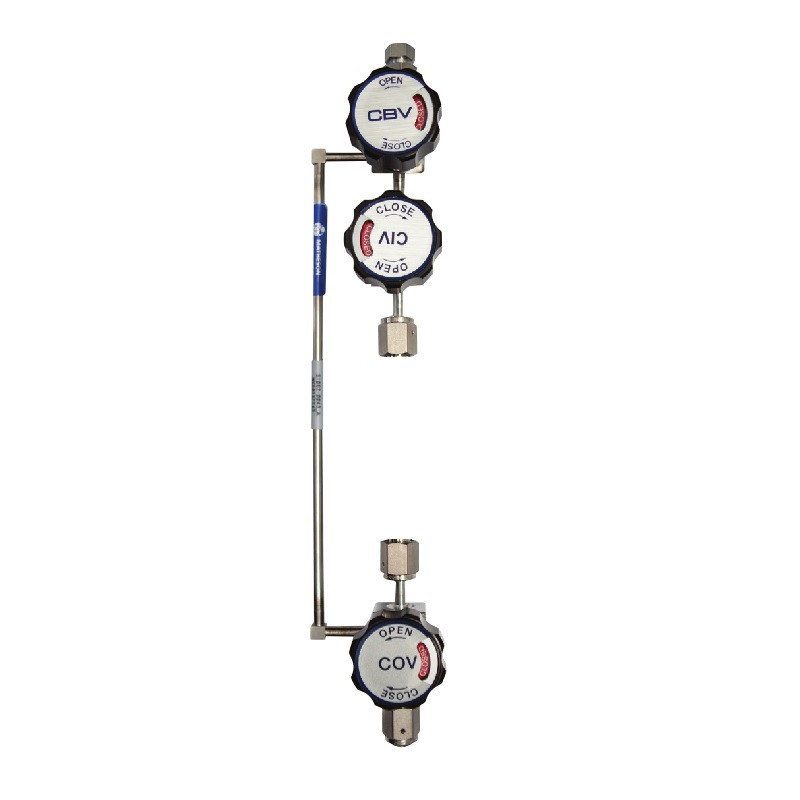

NANOCHEM® White Knight™ Bypass Module enables a White Knight™ purifier to be switched in or out of the gas flow circuit without interrupting the gas stream. The bypass module facilitates replacement of a depleted purifier and shortens the time required for purging. The bypass Module is also used during equipment start-up and maintenance, when purge gases flow from the source to the point-of use. Installation of a bypass is strongly recommended to avoid contamination and partial depletion of the purifier during installation.
Features and Benefits
• Purification bypass module for all White Knight™ purifiers
• Ultra-high purity applications
• Enhances process economy and improves equipment performance
• Low overall cost of ownership
• Easy to operate
• No power requirements
• Inlet, outlet and bypass springless diaphragm valves standard
Part Number |
Model Number |
For White Knight™ Model |
Inlet/Outlet Size* |
UEQ 10620043 | BYP-WK-75 | WK-75F | 1/4" |
UEQ 10620046 | BYP-WK-300 | WK-300P | 1/4" |
UEQ 10620042 | BYP-WK-500 | WK-500P | 1/4" |
UEQ 10620047 | BYP-WK-700 | WK-700P | 1/4" |
UEQ 10620044 | BYP-WK-2500 | WK-2500P | 1/4" |
UEQ 10620048 | BYP-WK-2500-8 | WK-2500P-8 | 1/2" |
UEQ 10620049 | BYP-WK-5000 | WK-5000P | 1/2" |
*Note: *Inlet is Face Seal - Female & Outlet is Face Seal - Male
Materials of Construction
• Valves: 316L stainless steel
• Valve Diaphragm: Elgiloy®
• Valve Seat: Kel-F®
• Tubing: 316L stainless steel
Specifications
• Internal Surface Finish: < 15 µin Ra
• Maximum Operating Temperature: 158°F (70°C)
• Inlet: 1/4" or 1/2" Face Seal - Female
• Outlet: 1/4" or 1/2" Face Seal - Male
