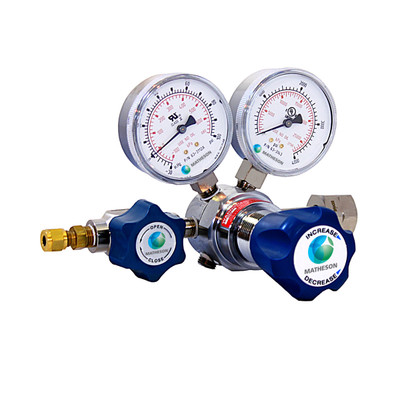

3530A-S Modified Single-Stage High-Purity Regulator - Brass

USD $791.49

3530A-S Modified Single-Stage High-Purity Regulator - Brass

USD $791.49
Part Number:    SEQ353xACGA-S
   Availability:   Ships within 24 hours from Montgomeryville, PA


Request Quote

Product Description

MATHESON made in the USA





A High-purity regulator designed for analytical applications. Use with non-corrosive gases.

Applications

• Supply of carrier gas / detector support gas for a variety of gas chromatography applications
• Supply of calibration standards to on-line process analyzers, emission monitoring systems, etc.


Design Features

• High-purity nickel plated brass barstock body
• High-purity 316 stainless steel diaphragm
• Metal to metal seals minimize diffusion of contaminants
• 2-1/2” inlet and delivery pressure gauges
• Equipped with outlet diaphragm valve
• Bonnet ported and threaded to pipe gases away from work area
• 1/4” compression tube outlet connection
• 10 micron metal filter protects seat from contamination
• Panel mountable, front bonnet thread and back (10-32UNF)
• Bonnet vent hole size: 1/8” NPTF

Ordering Information
Part Number* Max
Delivery Pressure
Delivery Pressure
Gauge
Cylinder Pressure
Gauge
SEQ3531ACGA-S 15 psi -30"-0-30 psi 0-4000 psi
SEQ3537ACGA-S 50 psi -30"-0-100 psi 0-4000 psi
SEQ3539ACGA-S 125 psi -30"-0-200 psi 0-4000 psi
SEQ3536ACGA-S 250 psi 0-400 psi 0-4000 psi
SEQ3538ACGA-S 500 psi 0-1000 psi 0-4000 psi

*Note: where CGA is replaced by the actual CGA number. Some CGA limitations may apply. (NI) for 1/4" FNPT inlet

Materials of Construction

• Gauges: Chrome plated brass
• Body: Nickel plated brass barstock
• Bonnet: Chrome plated brass barstock
• Diaphragm: 316L stainless steel
• Seat: Teflon
• Seals: Metal to metal
• Valve Body (4370 Series): Nickel Plated Brass
• Valve Diaphragm: 316L stainless steel
• Valve Seat: PCTFE

Specifications

• Maximum Inlet Pressure: 3000 psi (20,700 kPa)
• Typical Max Flow Rate (100 psi del press) : 8 SCFM-N2 (230 SLPM)
• Flow Capacity (Cv): 0.08
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• Porting (Regulator Body): 1/4” NPT Female
• Porting Configuration: 3 High, 3 Low

  Mounting Options


  Mounting Bracket for Single Stage & Line Regulators
Two 10-32 screws are needed to mount the back of the regulator to this bracket.
  Mounting Bracket for Regulators
PMK-2N Mounting Nuts are also needed (see below).
The regulator knob will have to be removed in order to mount on this bracket.
  PMK-2N Mounting Nuts
These nuts can be used either with the above bracket or for mounting in a panel.
  53 Series Protocol Station
This brass manifold is designed to provide a safe, reliable way of wall-mounting a cylinder regulator. Manifolds are provided a durable stainless steel bracket, stainless steel flex hose (3 ft std.), and a CGA connection with integral check valve.



Flow Curves

Flow Curves, 3510A/3530A Series

Instructions

Instructions, General Regulator

Warranty Information
