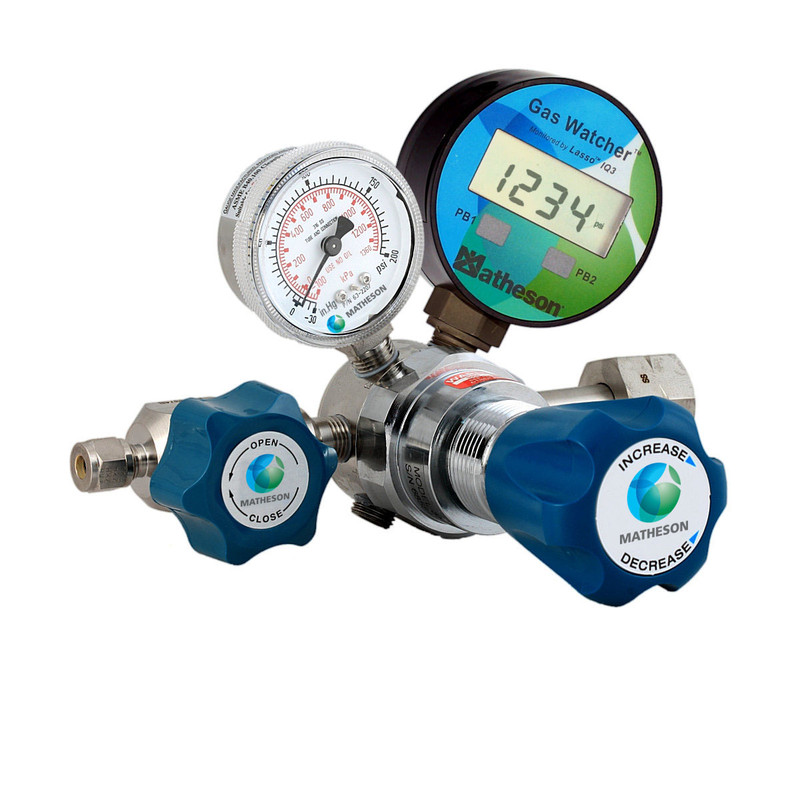

These high-purity regulators designed for analytical, non-corrosive or semi-corrosive gas applications incorporate a Gas Watcher^TM Bluetooth Pressure Gauge that displays the source gas pressure on a digital readout and also remotely via a Bluetooth connection to a web based portal. A Receiver/Router and an Annual Monitoring/Reporting Service (first year included with Receiver/Router) is required to view the source gas pressure remotely on a computer, tablet or smart phone and has the ability to have pressure status alerts sent either by text and/or email.

Applications

• Supply of carrier gas / detector support gas for a variety of gas chromatography applications
• Supply of calibration standards to on-line process analyzers, emission monitoring systems, etc.

Design Features

• High-purity 316 stainless steel barstock body
• High-purity 316 stainless steel diaphragm
• Metal to metal seals minimize diffusion of contaminants
• 2” delivery pressure gauge
• Bonnet ported and threaded to pipe gases away from work area
• Equipped with outlet diaphragm valve
• 1/4” compression tube outlet connection
• 10 micron metal filter protects seat from contamination
• Panel mountable, front bonnet and back threaded holes (10-32 UNF)
• Bonnet vent hole size: 1/8” NPTF

• Gas Watcher - Bluetooth Pressure Gauge
The Gas Watcher^TM Bluetooth Pressure Gauge displays the source gas pressure on a digital readout and also remotely via a Bluetooth connection to a web based portal. The operation and control settings for the Gas Watcher^TM are conveniently accessed through a set of two push buttons located on the face of the Gas Watcher^TM .

A Receiver/Router and an Annual Monitoring/Reporting Service (first year included with Receiver/Router) is required to view the source gas pressure remotely on a computer, tablet or smart phone and has the ability to have pressure status alerts sent either by text and/or email.

Materials of Construction

• Gauges: Stainless steel
• Body: 316 stainless steel barstock
• Bonnet: Chrome plated brass barstock
• Diaphragm: 316 stainless steel
• Seat: Teflon
• Seals: Metal to metal

Specifications

• Maximum Inlet Pressure: 3000 psig (20,700 kPa)
• Maximum Flow Rate (At 2000 psig, N2):
          Model 3510AW: 2400 SCFH (1128 SLPM)
          Model 3511AW: 650 SCFH (305 SLPM)
          Model 3513AW: 1100 SCFH (517 SLPM)
          Model 3516AW: 3000 SCFH (1400 SLPM)
          Model 3517AW: 4500 SCFH (2115 SLPM)
• Flow Capacity (Cv): 0.08
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• Porting (Regulator Body): 1/4” NPT Female
• Porting Configuration: 3 High, 3 Low
• Battery (Gas Watcher): CR 2450 (3V)
• Expected Battery Lifetime: 18 Months

Flow Curves

Flow Curves, 3510A/3530A Series

Instructions

Instructions, General Regulator

Instructions, Gas Watcher
