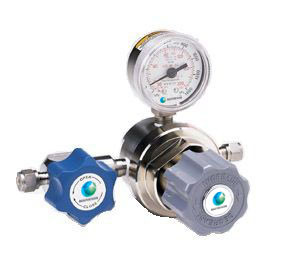

3450 Series High-Flow (0.6 Cv) Line Regulator - SS

USD $1,128.96

3450 Series High-Flow (0.6 Cv) Line Regulator - SS

USD $1,128.96
Part Number:    3450 Series
   Availability:   Ships within 24 hours from Montgomeryville, PA


Request Quote

Product Description

MATHESON made in the USA





A high purity line regulator for use with non-corrosive or semi-corrosive gases including dichlorosilane, ammonia, or amines in high flow applications.

Applications

• Point-of-use regulation of gases in high purity, high flow applications (up to 730 SCFH)

Design Features

• High-purity 316L stainless steel body
• 316 stainless steel diaphragm
• Metal to metal seals minimize diffusion of contaminants
• 2” delivery pressure gauge
• Bonnet ported and threaded to pipe gases away from work area
• Equipped with outlet diaphragm valve
• 1/4” compression tube inlet/outlet connection
• Porous metal filter protects seat from contamination
• Bonnet threaded for panel mounting
• Body screw thread tapped for back mounting


Materials of Construction

• Gauges: 316 stainless steel
• Body: 316L stainless steel
• Bonnet: Stainless steel
• Diaphragm: 316 stainless steel
• Seat: Teflon
• Seals: Metal to metal

Specifications

• Maximum Inlet Pressure: 500 psig (3,450 kPa)
• Maximum Flow Rate (At 500 psig, N2):
          Model 3452: 900 SCFH (425 SLPM)
          Model 3454: 1800 SCFH (850 SLPM)
• Flow Capacity (Cv): 0.6
• Operating Temperature: -40°F to 165°F (-40°C to 74°C)
• Flow Direction: Right to Left
• Inlet/Outlet Fittings: 1/4” Compression
• Porting (Regulator Body): 1/4” NPT Female
• Porting Configuration: 1 High, 2 Low

Instructions

Instructions, General Regulator

3D Model

3452

Warranty Information
