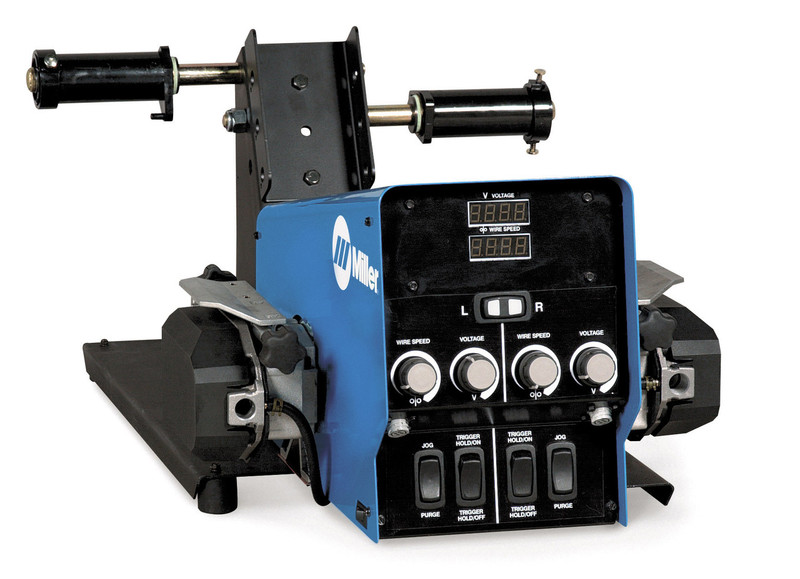

Miller D-74D wire feeder w/ BTB 400A Guns - 951204

Miller D-74D wire feeder w/ BTB 400A Guns - 951204

Part Number:    MIL 951204
   Availability:   In Store. Call 800-416-2505 or find location at https://www.mathesongas.com/store-locator/


Request Quote

Product Description


This product is available in MATHESON Retail Stores, or through MATHESON Sales Representatives, but it is not offered for online purchase. To find the MATHESON Location most convenient for you, use our Store Locator.

If visiting a store is not convenient for you (or even if it is), you may prefer to request a quotation. Simply click the "REQUEST QUOTE" button, and provide us with the necessary details. THANK YOU!



Features

Digital Meters
Ensure accuracy when presetting and reading actual voltage, amperage and wire feed speed.

Remote Voltage Control
Allows you to set both voltage and wire feed speed at the feeder, saving time and increasing weld quality because optimal weld parameters are easy to set.

Available in Dual-Wire Models
Allows two different wire types to be available on one feeder, avoiding downtime from changing spools and drive rolls.

Toolless Rotatable Drive Assembly
Allows operator to rotate the drive housing, allowing a straight path for wire flow.

Reduced Maintenance
High-torque permanent-magnet motor, sealed ball bearing gear drive and solid-state speed and brake control are maintenance free for long life.

Trigger Hold
Allows the operator to make long welds without having to hold the trigger continuously – reducing operator fatigue.

Quick-Change Drive Rolls
Save time with standard, quick-change drive rolls.

Remote Configurations
Remote wire feeder control boxes and wire drive assemblies are available for non-Miller boom applications.


GENERAL SPECIFICATIONS
Model D-74D (Dual)
Industries Interests Aerospace
  Construction
  Heavy Equipment Manufacturing
  Infrastructure
  Manufacturing
  Railcar
  Shipbuilding
  Boat / Yacht
  High Purity Processing
Input Circuit Welding Rating 750A at 100% duty cycle
Power Source Compatibility CV
Welding Power Source Type CV
Wire Feeder Type Bench
Warranty Miller's True Blue Warranty
Wire Feed Speed 50 IPM - 780 IPM
Wire Diameter Solid Wire 0.023 in 0.094 in
  Flux Cored 0.03 in 0.094 in
