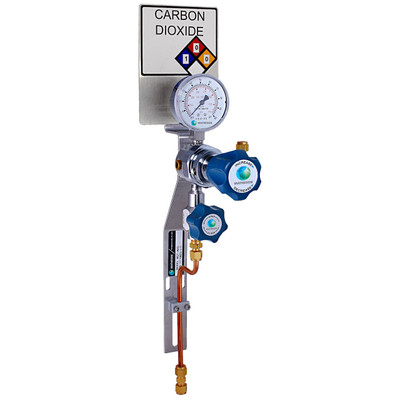

Matheson's GasTrak™ Control Systems represent a practical approach to controlling and delivering low or high purity gases for distribution to "point-of-use" locations to meet the operating requirements in today’s laboratory environment. GasTrak™ Systems provide a cost effective, efficient and safer alternative to maintaining gas cylinders in the laboratory environment as the main source of gas supply. The GasTrak™ Control System is a simplified design which offers the ability to regulate gas operating pressure, provide gas purification and flow control within a single dedicated "GasTrak™ Station" for each specific gas being utilized and distributed within the lab. The individual "GasTrak™ Stations" can be wall mounted at the point-of-use for local instrument source control; or each of the individual "GasTrak™ Stations" can be combined into a complete system to provide centralized source control of multiple gases being used.

Applications

• Provide the end-user with efficient control and delivery of multiple gases for individual instrument point-of-use or for controlling multiple gas sources within a single centralized system.
• Control the delivery of gases for several instruments, a specific zone (location) within a lab or the entire gas delivery requirements into a laboratory.

Design Features

• Ideal for High (UHP 99.999%+) or Low Purity Gas Delivery
• Control features include: Pressure Regulation, Purification and Flow Control.
• Provides individual gas control/delivery stations for "point-of-use" delivery to analytical instruments.
• Gas specific labeling for each individual control/delivery station.
• Three Operating Pressure Ranges: 0-30 psig / 0-100 psig / 0-200 psig.
• 1/4" Compression Fitting Standard inlet connection (3/8" and 1/2" Optional).
• 1/4" Compression Fitting outlet connection.
• Design allows convenient access to all components.
• Compact design is cost effective to implement.

 Materials of Construction

• Regulator: Chrome Plated Brass Barstock
• Valve: Nickel Plated Brass Barstock
• Gauge: Chrome Plated Brass
• Fittings: Brass
• Tubing: Copper
• Regulator Seat: Teflon
• Valve Seat: Kel-F

Specifications

• Maximum Inlet Pressure: 400 psig (2,760 kPa)
• Flow Capacity (Cv): 0.08
• Operating Temperature: -15°F to 140°F (-26°C to 60°C)

Wall Mounting Kits

• 1 GasTrak
This kit includes two 12" long pieces of Aluminum U-channel and two sets of nuts and bolts to secure one GasTrak™ to the U-channel. This kit does not include the hardware to mount the U-channel to a wall.
Wall Mounting Kit - 12"

• 2 GasTraks
This kit includes two 18" long pieces of Aluminum U-channel and four sets of nuts and bolts to secure the GasTraks™ to the U-channel. This kit does not include the hardware to mount the U-channel to a wall.
Wall Mounting Kit - 18"

• 3 GasTraks
This kit includes two 24" long pieces of Aluminum U-channel and six sets of nuts and bolts to secure the GasTraks™ to the U-channel. This kit does not include the hardware to mount the U-channel to a wall.
Wall Mounting Kit - 24"

• 4-5 GasTraks
This kit includes two 36" long pieces of Aluminum U-channel and ten sets of nuts and bolts to secure the GasTraks™ to the U-channel. This kit does not include the hardware to mount the U-channel to a wall.
Wall Mounting Kit - 36"

Flow Curves

Flow Curves, 3420A/3430A Series
