A general purpose fuel gas regulator designed for low inlet pressure and low delivery pressure applications with fuel gases with vapor pressures below 250 psi.

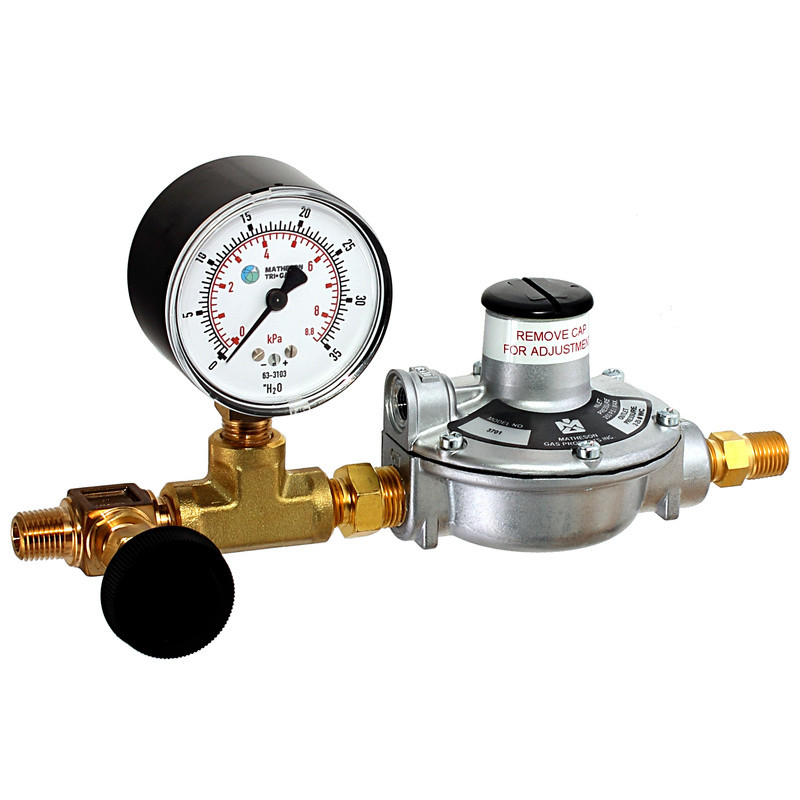

NOTE: Photo does not show the CGA 510 inlet connection.

Applications

• Control of constant fuel burner flame.
• Inert gas blanketing at low pressures.

Design Features

• Zinc body
• Rubber diaphragm
• Porous metal filter protects seat from contamination
• CGA 510 inlet connection
• 1/4” NPTM outlet connection with loose hose barb
• Pressure adjusting screw protected by “security cap”

Materials of Construction

• Gauges: Brass
• Body: Cast zinc
• Bonnet: Die cast zinc
• Diaphragm: Natural rubber
• Seat: Natural rubber
• Seals: Natural rubber

Specifications

• Maximum Inlet Pressure: 250 psi (1,725 kPa)
• Maximum Flow Rate (At 200 psi, N2): Less than 35 SLPM
• Flow Capacity (Cv): 0.8
• Operating Temperature: -40°F to 150°F (-40°C to 65°C)
• Porting (Regulator Body): 1/4” NPT Female
• Porting Configuration: 1 High, 1 Low
• Integral Relief Valve: 17" wc to 3 psi above set point

Instructions

Instructions, Economy Regulator
