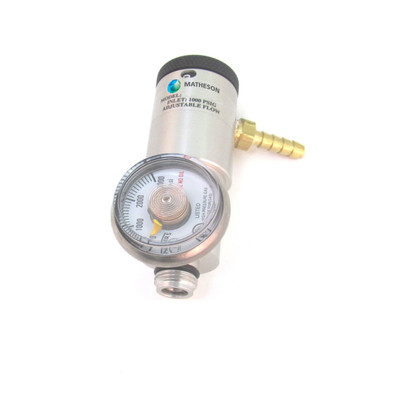

Variable flow regulators for use with MicroMAT™ 14, MicroMAT™ 105, and MicroMAT™ 221 cylinders. For use with portable and/or laboratory instrumentation that requires calibration.

Design Features

• Aluminum body
• Stainless steel piston
• Hose barb outlet (3/16")
• Outlet port: 1/8" FNPT
• Selectable flow rates from 0.3-8 SLPM: 0.3, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 5.0. 6.0, 7.0, 8.0
• Inlet gauge: 3000 psig (600 psig for CGA 600)
• Inlet filter: 40 micron

*Note: where CGA is replaced by the actual CGA number. Some CGA limitations may apply.

Materials of Construction

• Body: Aluminum-clear anodized
• Piston: 303 stainless steel
• Seat: Teflon
• Seals: Viton
• Gauge: Brass w/SS case
